Tell Sencha CMD and Sencha Architect what Ruby installation to use

Earlier this week I had some serious problems when Sencha CMD told me all the time that it couldn’t detect the Ruby on my system. And that while I was 100% sure that it was there.

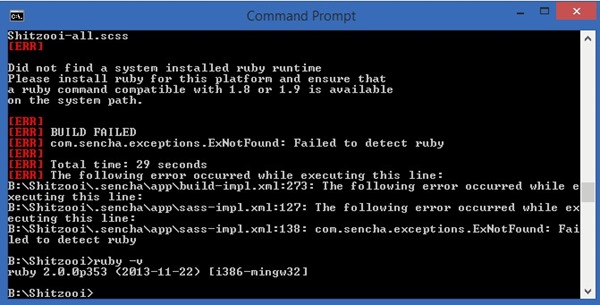

Ruby not found with Sencha CMD

Tell Sencha where you have hidden the ruby

It is possible to override the automatic search for Ruby by Sencha CMD or Architect by adding it to Sencha.cfg. Sencha support gave me the following instructions on how to do this. Handy, for they nowhere documented in the Sencha online documentation.
(information based on Windows 8.1 installed PC)

System wide

By placing configuration options on C:UsersMebinSenchaCmdsencha.cfg, which takes precedence over Instance-wise configurations and applies to all installed versions.

User wide

By placing configuration options on C:UsersMe.senchacmdsencha.cfg, which takes precedence over System-wise configurations.

Instance wide

By placing configuration options on C:UsersMebinSenchaCmd4.0.1.45sencha.cfg.

What to tell

In any case, it is suggested to modify C:UsersMebinSenchaCmd4.0.1.45sencha.cfg since it is an already-existing file. Just add the following line at the end of the file (replace the right patch to your Ruby installation):


This will explicitly instruct cmd to find your ruby install there. Sencha Cmd should work properly with either ruby 2 or 1.9.3, previous versions ( and below will only work with ruby 1.9.3).

But that was not my problem

Just to make sure what the problem could be, why Sencha CMD or Architect can’t find your Ruby installation also check your PC protection software. I have Comodo Security Suite installed and the problem why Ruby couldn’t be found was because of the automatic sandbox feature in this software. And it sandboxed Ruby. And that was after all my problem, that cost me several hours to find out. So be careful that you don’t blame Sencha too soon for not finding your Ruby.

Johan van de Merwe
Dedicated to professional software development since 1985. Has worked since 1992 as IT manager in several international operating companies. Since 2007 CEO and Sencha Ext JS web application developer at Enovision GmbH.
